CL4-SXR

Our next-generation flagship 4-inch industrial label printer

With dramatically improved print speed and accuracy, advanced sensor technology, a redesigned user interface and AI-powered predictive maintenance capabilities, the CL4-SXR printer embodies SATO’s commitment to reliability and innovation.

The CL4-SXR printer supports customers in building the workplaces of the future by combining speed, precision, durability, ease of use, predictive maintenance and eco-conscious design to deliver top-class performance and meet every on-site labelling need.

CL4NX Plus functionality icons

Enquire Technical Support

Product Features

Optimised RFID Encoding

Supports UHF, HF RFID, StackTag^TM and NFC printing and encoding. SATO RF Analyse significantly speeds up the initial setup for RFID labels.
Enhanced Precision

High-accuracy printing ideal for PCB labelling of small electronic products. The micro print mode enables higher tolerance (+/-0.7 mm) for increased print image accuracy when using small label sizes (<53mm length).
Fast, Industrial Performance

The 14ips print speed at 305dpi boosts efficiency and productivity, while the die-cast aluminum frame and stable print and ribbon mechanism provide durability. Additionally, the metal casing, including the front panel and side covers, offers protection in harsh environments.
Standalone PC-less Printing

Application-enabled Printing (AEP) allows PC-less printing with peripheral devices, saving cost and space. Additionally, the full-color interactive LCD screen with intuitive menu navigation makes onboarding a breeze.
Easy Barcode Check

Install a stand-kit and certified scanner to check 1D & 2D codes, ensuring defective labels are void-marked.
Dynamic Integration

Multiple interfaces like serial, LAN, USB, and WLAN with competitive language emulations for legacy application compatibility.
Sustainable Innovation

Coreless ribbon uptake simplifies loading; optional linerless kit reduces traditional label production waste.
Intuitive Operation

Toolless parts replacement and visual indicators for proactive maintenance. LED indicators and guidance videos aid in error resolution and printer maintenance.

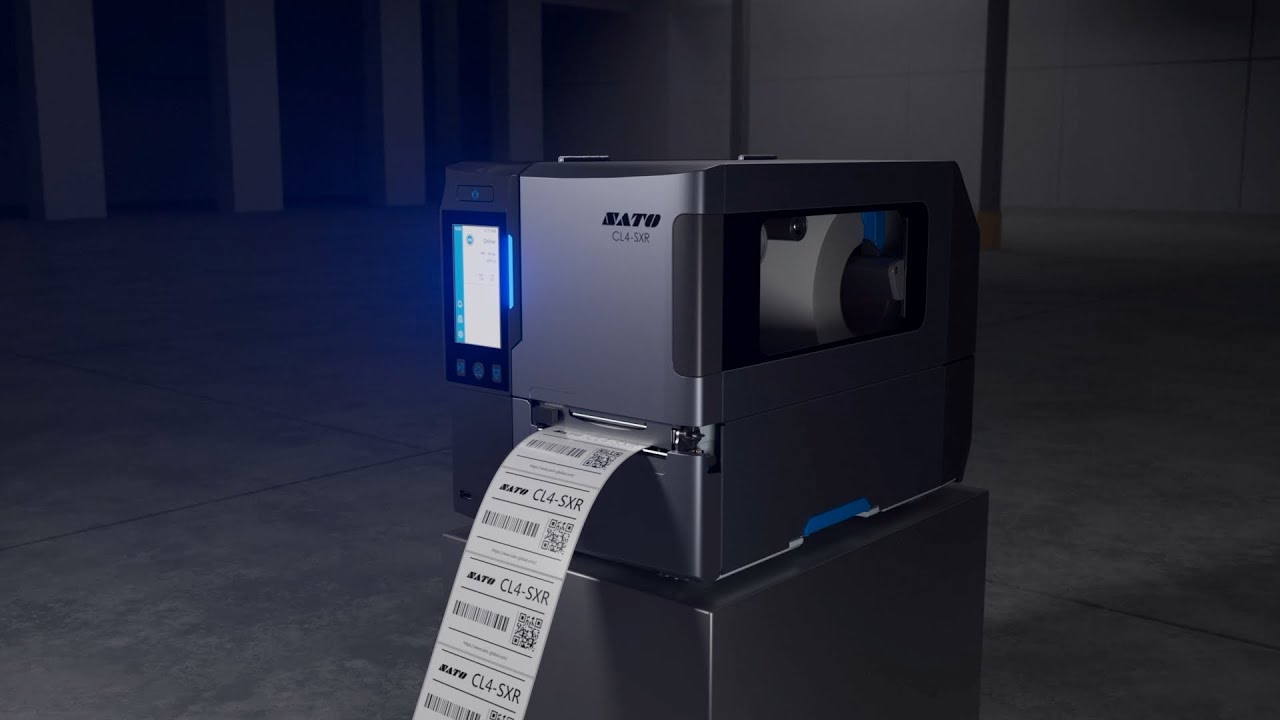

Introducing the CL4-SXR

Next-generation 6-inch thermal industrial printer with dramatically improved print speed and accuracy, advanced sensor technology, redesigned user interface and AI-powered predictive maintenance capabilities.

Enquire

Printer Specifications

CL4NX Plus 203 dpi

PRINT SPEED	14 ips (355 mm/sec)
PRINT METHOD	Direct Thermal/Thermal Transfer
MAXIMUM PRINT AREA	4.09" (104 mm) W x 98.43" (2500 mm) L
MEMORY	CPU1: 2GB Flash, 256MB RAM CPU2: 4MB Flash, 64 MB RAM
Printer Emulations	SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP
INTERFACES	STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, NFC OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)
REMOTE MANAGEMENT	SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

CL4NX Plus 305 dpi

PRINT SPEED	14 ips (355 mm/sec)
PRINT METHOD	Direct Thermal/Thermal Transfer
MAXIMUM PRINT AREA	4.09" (104 mm) W x 59.06" (1500 mm) L
MEMORY	CPU1: 2GB Flash, 256MB RAM CPU2: 4MB Flash, 64 MB RAM
Printer EMULATIONS	SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP
INTERFACES	STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, NFC OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)
REMOTE MANAGEMENT	SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

CL4NX Plus 609 dpi

Print Speed	6 ips (152 mm/sec)
PRINT METHOD	Direct Thermal/Thermal Transfer
MAXIMUM PRINT AREA	4.09" (104 mm) W X 15.74" (400 mm) L
MEMORY	CPU1: 2GB Flash, 256MB RAM CPU2: 4MB Flash, 64 MB RAM
PRINTER EMULATIONS	SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP
INTERFACES	STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, NFC OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)
REMOTE MANAGEMENT	SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

Applications

Discover the versatility of the CL4NX Plus industrial printer across diverse industries. From manufacturing to healthcare, our printer delivers precise labelling solutions tailored to your specific needs, ensuring efficiency and compliance in every application.

Manufacturing

Parts & products labels, GHS labels, PCB & component labels
Retail

Distribution labels, price tags, shelf labels, markdown labels
Transport & Logistics

Shipping labels, pallet labels, bin labels, rack labels
Food Service & Distribution

Product labels, ingredient labels, expiry labels
Healthcare

GS1 labels, FDA labels, prescription labels, specimen labels, blood bag labels
Automotive

Parts & product labels, kanban labels
Hospitality

Food rotation labels, asset management labels
Education & Libraries

RFID labels for books, asset management labels
Travel & Leisure

Tickets, wristbands
Blood & Pathology

Specimen labels, blood bag labels
